快速连接适配器
快速链接

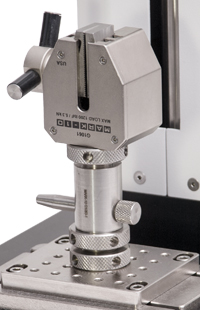

图例为典型的安装配置::
传感器/测量台配置
推拉力计配置
零件编号
描述
1
G1079
Lock ring, 3/4-16
2
G1081
G1081-1
G1018-2
G1081-3
G1081-1
G1018-2
G1081-3
Eye end, #10-32M
Eye end, 5/16-18M
Eye end, 1/2-20M
Eye end, 1/4-28M
Eye end, 5/16-18M
Eye end, 1/2-20M
Eye end, 1/4-28M
3
G1080
Anchor pin
4
G1083
G1083-1
G1083-2
G1083-1
G1083-2
Eye end adapter, #10-32M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
5
G1083
G1083-1
G1083-2
G1083-1
G1083-2
Eye end adapter, #10-32M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
6
G1082
G1082-1
G1082-1
Eye end, #10-32F
Eye end, 5/16-18F
Eye end, 5/16-18F
G1088
Spanner wrench (not shown)
G1084-X 止动垫片
型号
ØA
重量
lb[kg]
lb[kg]
G1084
0.20
[5.1]
[5.1]
0.03
[0.01]
[0.01]
G1084-1
0.20
[5.1]
[5.1]
0.03
[0.01]
[0.01]
G1084
0.32
[8.2]
[8.2]
0.03
[0.01]
[0.01]
G1079 Lock Ring
重量
lb[kg]
lb[kg]
0.07
[0.03]
[0.03]
G1079 锁紧环
重量
lb[kg]
lb[kg]
0.07
[0.03]
[0.03]
G1081-X 螺纹连接端
型号
A
螺纹
重量
lb[kg]
lb[kg]
量程
lbF [N]
lbF [N]
G1081
1.82
[46.2]
[46.2]
#10-32
0.13
[0.06]
[0.06]
200
[1,000]
[1,000]
G1081-1
1.88
[47.8]
[47.8]
5/16-18
0.14
[0.06]
[0.06]
200
[1,000]
[1,000]
G1081-2
2.02
[51.3]
[51.3]
1/2-20
0.15
[0.07]
[0.07]
500
[2,500]
[2,500]
G1081-3
1.87
[47.5]
[47.5]
1/4-28
0.13
[0.06]
[0.06]
2,000
[10,000]
[10,000]
G1082-X 螺纹连接端
型号
螺纹
重量
lb[kg]
lb[kg]
量程
lbF [N]
lbF [N]
G1082
#10-32
0.13
[0.06]
[0.06]
200
[1,000]
[1,000]
G1082-1
5/16-18
0.14
[0.05]
[0.05]
500
[2,500]
[2,500]
G1083-X 螺纹连接端适配头
型号
A
螺纹
重量
lb[kg]
lb[kg]
量程
lbF [N]
lbF [N]
G1083
2.10
[53.3]
[53.3]
#10-32
0.26
[0.12]
[0.12]
200
[1,000]
[1,000]
G1083-1
2.16
[54.9]
[54.9]
5/16-18
0.26
[0.12]
[0.12]
500
[2,500]
[2,500]
G1083-2
2.30
[58.4]
[58.4]
1/2-20
0.28
[0.13]
[0.13]
2,000
[10,000]
[10,000]
G1080 插销
重量
lb[kg]
lb[kg]
0.07
[0.03]
[0.03]
G1088 专用扳手
订购信息
单个组件
型号
描述
价 格
G1079
锁紧环
电话咨询
G1080
插销
电话咨询
G1081
螺纹连接端, #10-32M
电话咨询
G1081-1
螺纹连接端, 5/16-18M
电话咨询
G1081-2
螺纹连接端, 1/2-20M
电话咨询
G1081-3
螺纹连接端, 1/4-28M
电话咨询
G1082
螺纹连接端, #10-32F
电话咨询
G1082-1
螺纹连接端, 5/16-18F
电话咨询
G1083
螺纹连接端适配头, #10-32M
电话咨询
G1083-1
螺纹连接端适配头, 5/16-18M
电话咨询
G1083-2
螺纹连接端适配头, 1/2-20M
电话咨询
G1084
止动垫片, 0.20[5.08mm] ID
电话咨询
G1084-1
止动垫片, 0.32"[8.13mm] ID
电话咨询
G1084-2
止动垫片, 0.51"[12.95mm] ID
电话咨询
G1088
专用扳手
电话咨询
传感器/测量台连接套装
夹具连接套装
传感器/推拉力计
连接套装
连接套装
AC1047/AC1047-1/
AC1047-2/AC1047-3
AC1047-2/AC1047-3
AC1046 / AC1046-1 / AC1046-2
AC1045 / AC1045-1 / AC1045-2*
套件组成:
套件组成:
套件组成:
G1081 / G1081-1 / G1081-2 /
G1081-3 eye end - qty. 1
G1080 anchor pin - qty. 1
G1079 lock ring - qty. 2
G1083 / G1083-1 / G1083-2
eye end adapter - qty. 1
G1079 lock ring - qty. 1
G1082 / G1082-1 / G1081-2
eye end - qty. 1
G1084 / -1 / -2 washer - qty. 1
G1079 lock ring - qty. 2
G1080 anchor pin - qty. 1
应用套装
型号
描述
适用于
价 格
AC1047
测量台底座/传感器适配套件, #10-32M
- Test stand bases w/ #10-32 mounting
- Series R03 load cells
- Series R03 load cells
电话咨询
AC1047-1
测量台底座/传感器适配套件, 5/16-18M
- Test stand bases w/ 5/16-18 mounting
电话咨询
AC1047-2
测量台底座/传感器适配套件, 1/2-20M
- Test stand bases w/ 1/2-20 mounting
- MR01-500 / -1000 / -2000 load cells
- MR01-500 / -1000 / -2000 load cells
电话咨询
AC1047-3
测量台底座/传感器适配套件, 1/4-28M
- MR01-50 / -100 / -200 load cells
电话咨询
AC1046
夹具适配套件, #10-32M
- Grips with #10-32 mounting
电话咨询
AC1046-1
夹具适配套件, 5/16-18M
- Grips with 5/16-18 mounting
电话咨询
AC1046-2
夹具适配套件, 1/2-20M
- Grips with 1/2-20 mounting
电话咨询
AC1045
推拉力计适配套件, #10-32F
- Force gauges up to 100 lbF
电话咨询
AC1045-1
推拉力计适配套件, 5/16-18F
- 200 lbF & 500 lbF force gauges
电话咨询
AC1045-2
推拉力计适配套件, 1/2-20M
- M5-1000 & M5-2000 force gauges
电话咨询
